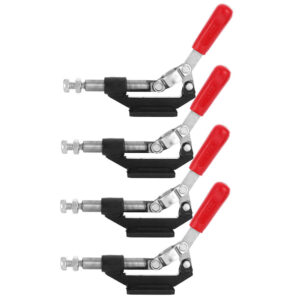

4 Pack 304E Plunger Stroke Push Pull Toggle Hand Tool Heavy Duty Toggle Clamps

Description

This plunger toggle clamp is the most economical Push Pull type toggle clamp with flange base. Most suitable for quickly holding down sheet metal or circuit boards. Widely used on welding, jigging, repairing field. During clamping, the lever is controlled to prevent impact on functioning due to side thrust. Vinyl Colored Grip handle for easy, safe and comfortable operation.

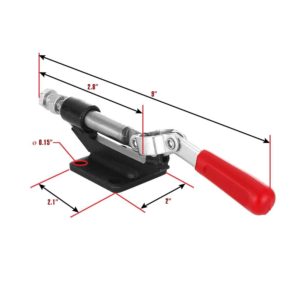

SIZE: Overall length is 9”, Stroke range 1.8″ (46MM), Length of the plunger is 3.8″ (100MM). Clamping force is quite stable and reliable, which can greatly reduce the processing time of various parts with high efficiency.

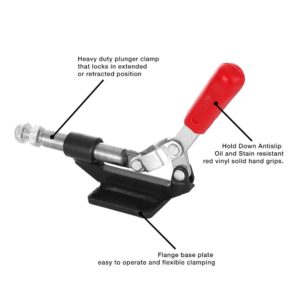

FUNCTION: Heavy duty plunger clamp that locks in extended or retracted position. Provides a quick side mount hold-down toggle clamping solution with a handle that opens a full 180 degrees and that is essential for use with an assortment of jigs, fixtures, assemblies – all while securing your workpiece in a vertical or horizontal placement.

HORIZONTAL HANDLE: Toggle clamp flaunts an easy-to-use ribbed plastic handle that offers comfort, optimal adjustability and push pull action that allows the plunger to move in and out along the axis.

APPLICATION: Ideal for quickly fixing metal plate or circuit boards for woodworking, mechanical operations, welding and molding, such as to make jointed jig for table saws or router tables.

SPECIFICATION

• Model No: 304E
• Type: Plunger Push Pull Toggle Clamp
• Holding Capacity: 500 lbs each clamp
• Overall Length: 9 Inch
• Stroke range: 1.8″ (46MM)
• Length of the plunger: 3.8″ (100MM)
• Handle: Vinyl Colored Grip
• Material: Steel
